Surface Mount System
These items are out of stock. These items are instock & ready to ship

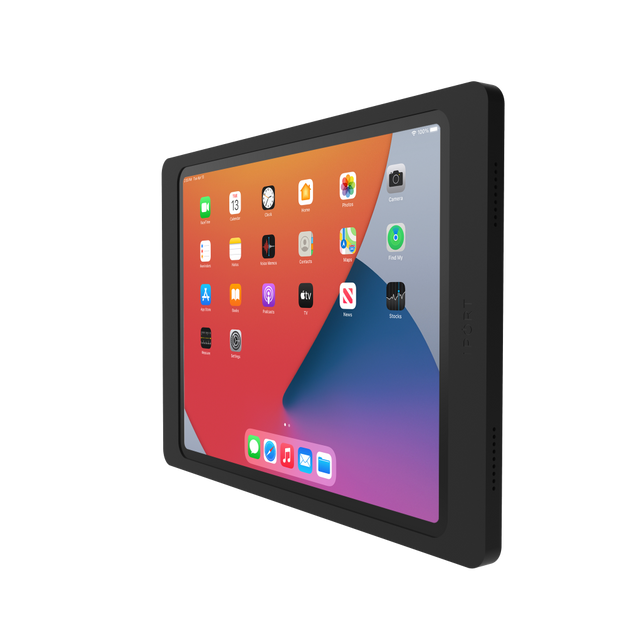

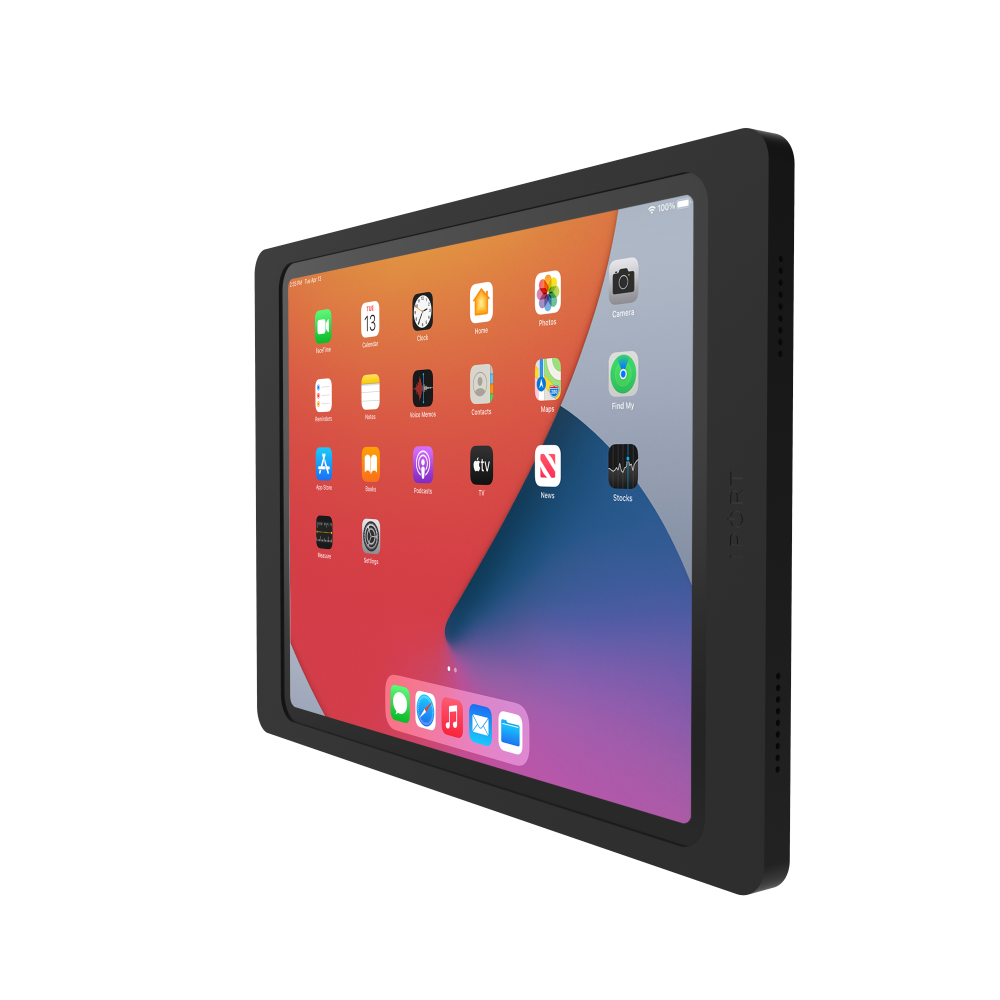

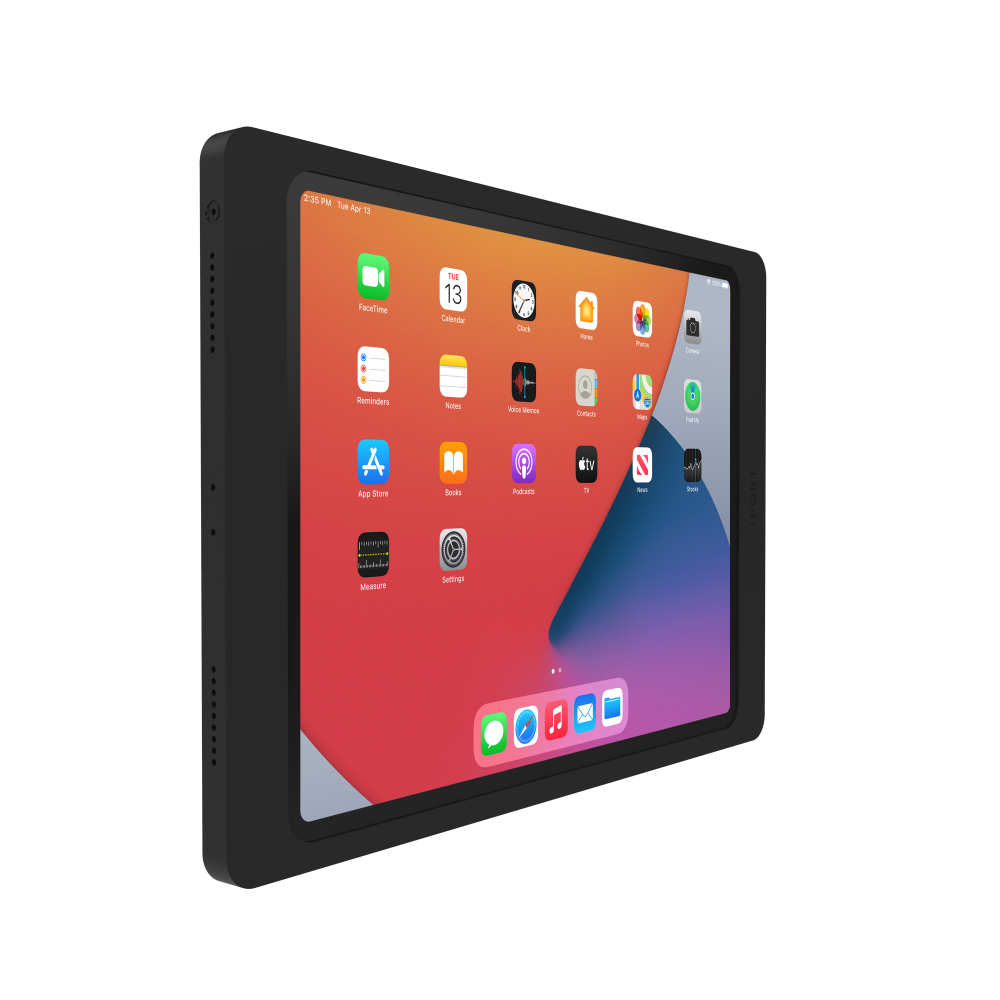

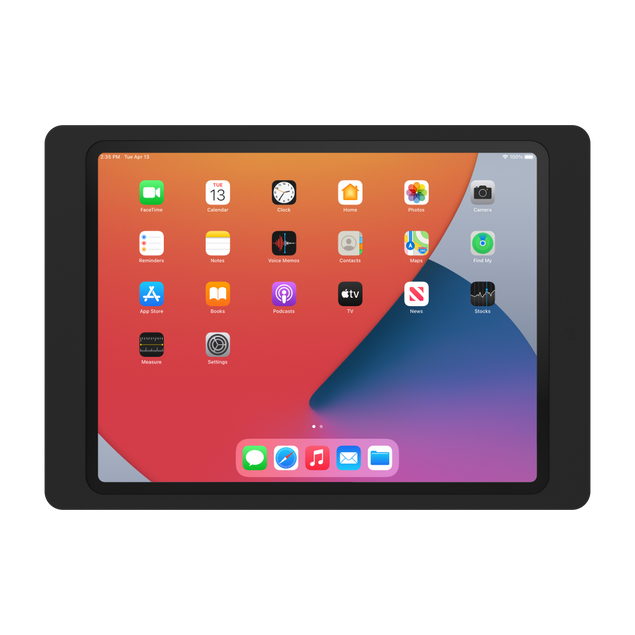

The IPORT Surface Mount System for iPad Air 13-inch (M3) mounts iPad flush against a wall or solid surface for a clean, architectural installation.

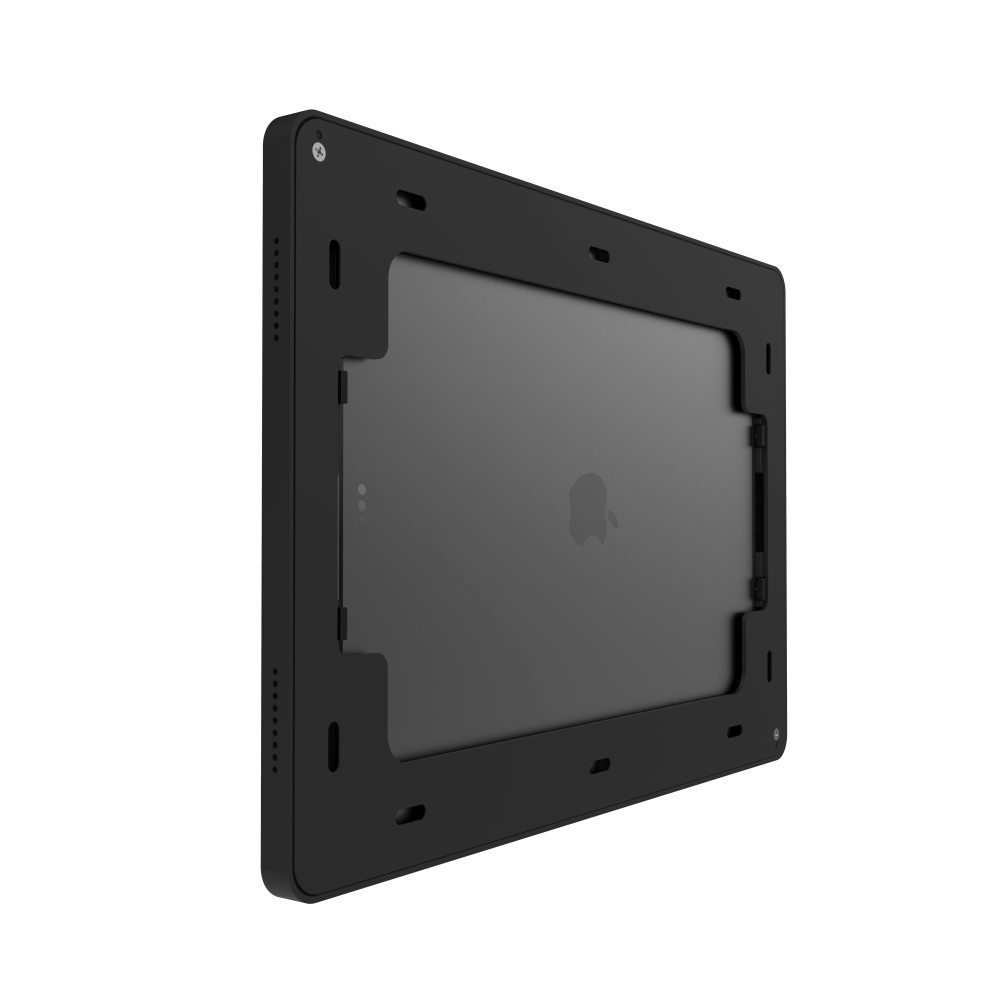

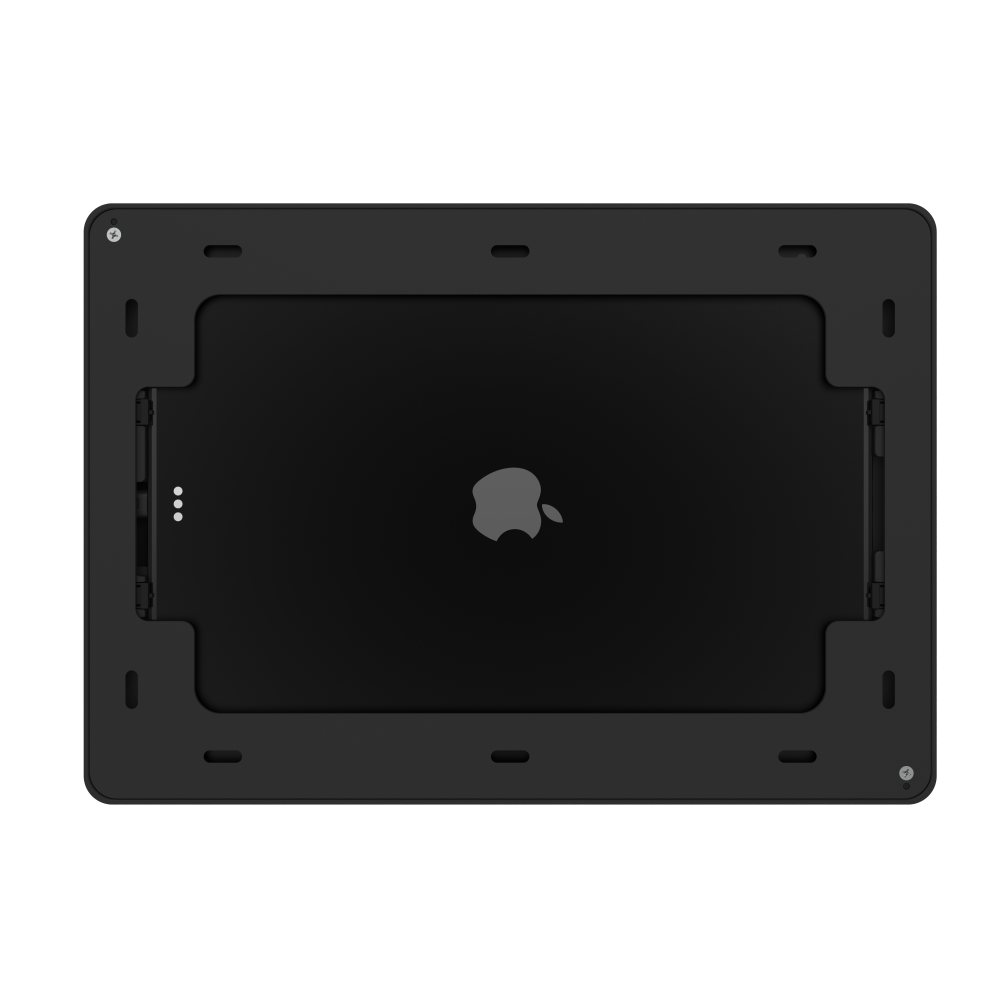

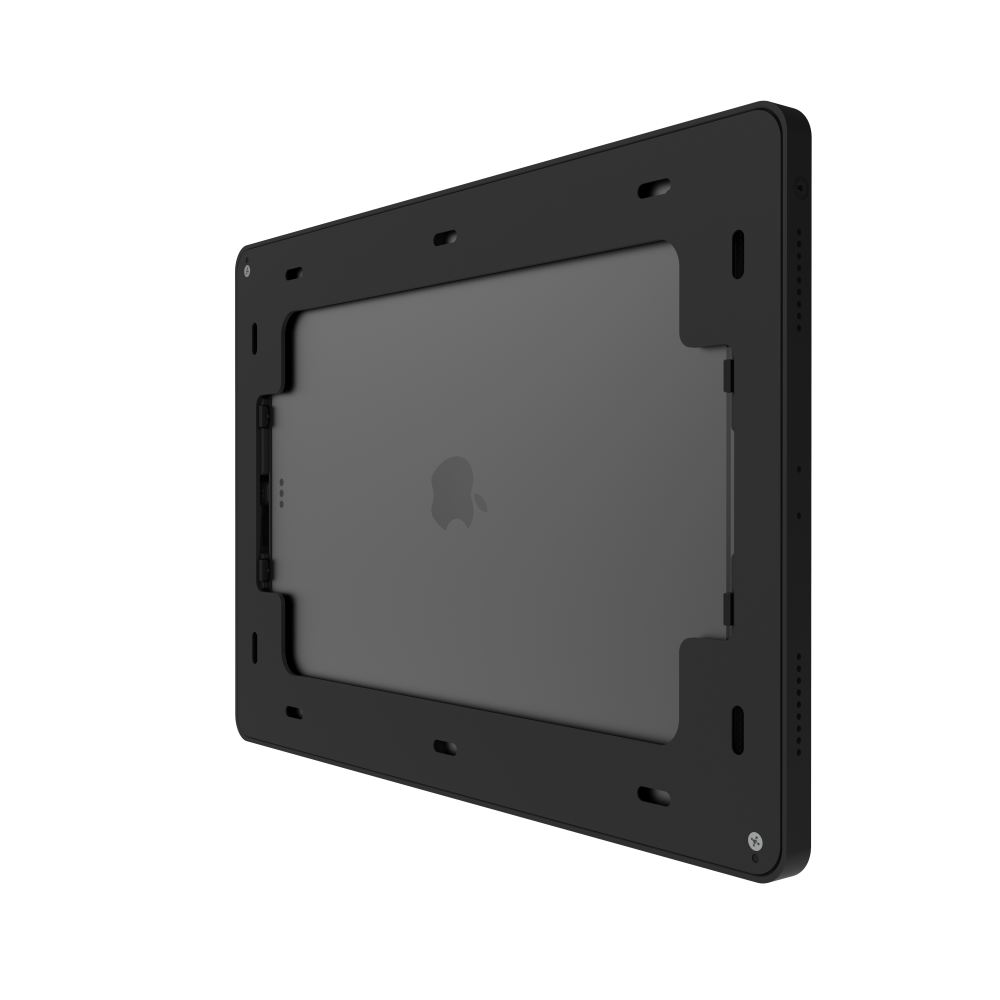

A minimalist aluminum bezel doubles as the mounting frame, while the included PoE+ Adapter and USB-C cable deliver continuous power and network over a single Cat 5 run — no outlets, no visible cables. Ideal for smart home control, room scheduling and elegant kiosk installations where design matters as much as uptime. Everything needed for a permanent, always-on installation comes in the box.
| Warranty: | 1 YEAR |
| Model: | iPad Air 13-in (M4) |
| Compatible Tablets: | iPad Pro 12.9" (6th gen), iPad Pro 12.9" (5th gen), iPad Pro 12.9" (4th gen), iPad Pro 12.9" (3rd gen), iPad Air 13-in (M2), iPad Air 13-in (M3), iPad Air 13-in (M4) |
| Color: | Black |
| Works With: | iPad Air 13-inch (M4) |
| Lockable: | Yes |
| Min Operating Temperature: | 32 F (0.0 C) |
| Max Operating Temperature: | 95 F (34.97 C) |
| Operating Humidity: | 5% to 95% |
| Input Voltage: | 5.3VDC/3A; 9VDC/3A |
| Wall Box Compatibility: | US1G, EURO1G, UK1G |
| Required Power at Switch: | 50-57 volts DC, 30W |
| Output Voltage: | 5.3VDC/3A; 9VDC/3A |
| iPad Model Number: | A2898, A2899, A2900, A3268, A3269, A3271, A3461, A3462, A3464 |
| iPad Order Number: | MV2D3LL/A, MV273LL/A, MV293LL/A, MV283LL/A, MV2C3LL/A, MV2J3LL/A, MV2G3LL/A, MV2F3LL/A, MV2H3LL/A, MV2P3LL/A, MV2R3LL/A, MV2Q3LL/A, MV2T3LL/A, MV2L3LL/A, MV2K3LL/A, MV2N3LL/A, MV6R3LL/A, MV6T3LL/A, MV6V3LL/A, MV6X3LL/A, MV6U3LL/A, MV6W3LL/A, MV6Y3LL/A, MV703LL/A, MV6Q3LL/A, MV6S3LL/A, MV6P3LL/A, MV783CH/A, MV7D3CH/A, MV7H3CH/A, MV7M3CH/A, MV7A3CH/A, MV7F3CH/A, MV7K3CH/A, MV7P3CH/A, MV7C3CH/A, MV7G3CH/A, MV7L3CH/A, MV7Q3CH/A, MV793CH/A, MV7E3CH/A, MV7J3CH/A, MV7N3CH/A, MH5N4LL/A, MH5P4LL/A, MH5R4LL/A, MH5Q4LL/A, MH5V4LL/A, MH5U4LL/A, MH5X4LL/A, MH5W4LL/A, MH9E4LL/A, MH9F4LL/A, MH9H4LL/A, MH9J4LL/A, MH9K4LL/A, MH9T4LL/A |
| Inputs: | Molex - M |
| Outputs: | USB-C |
| Interfaces: | USB-C |
| IP Rating: | none |
| Prop 65 Warning: | Yes |

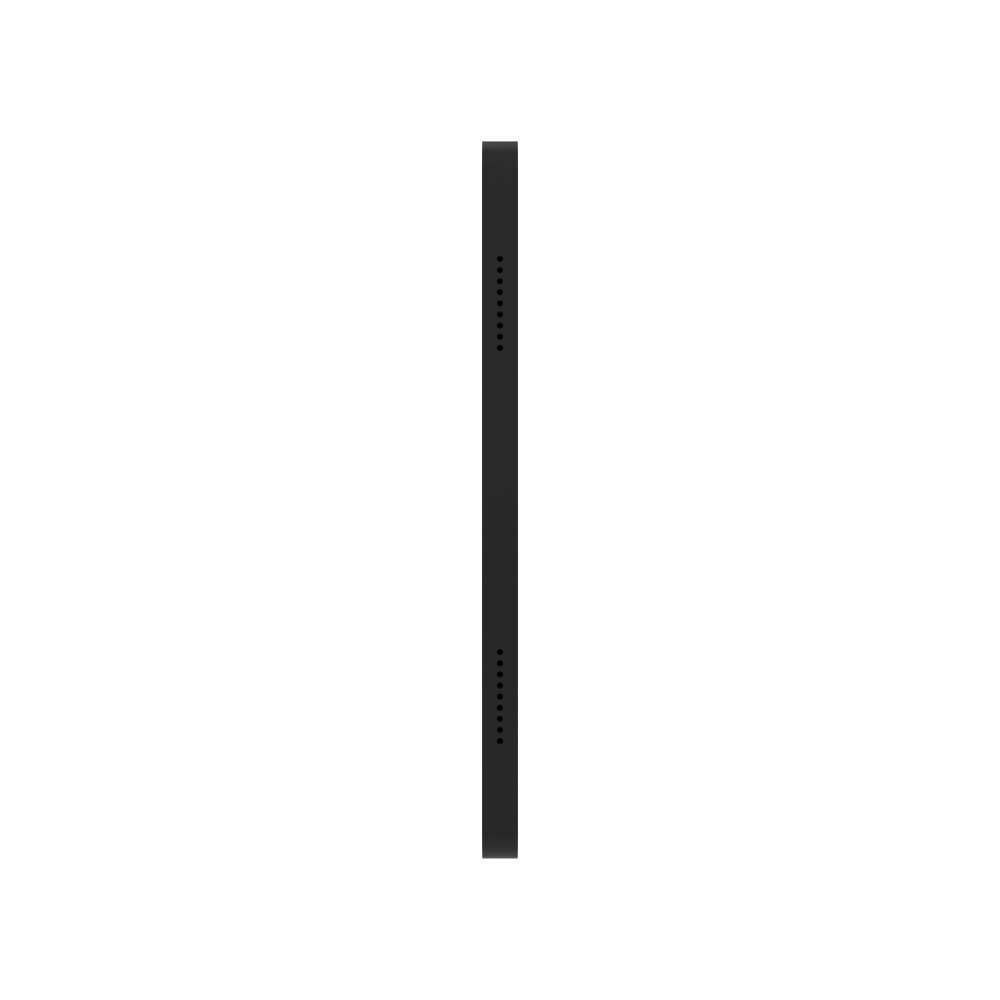

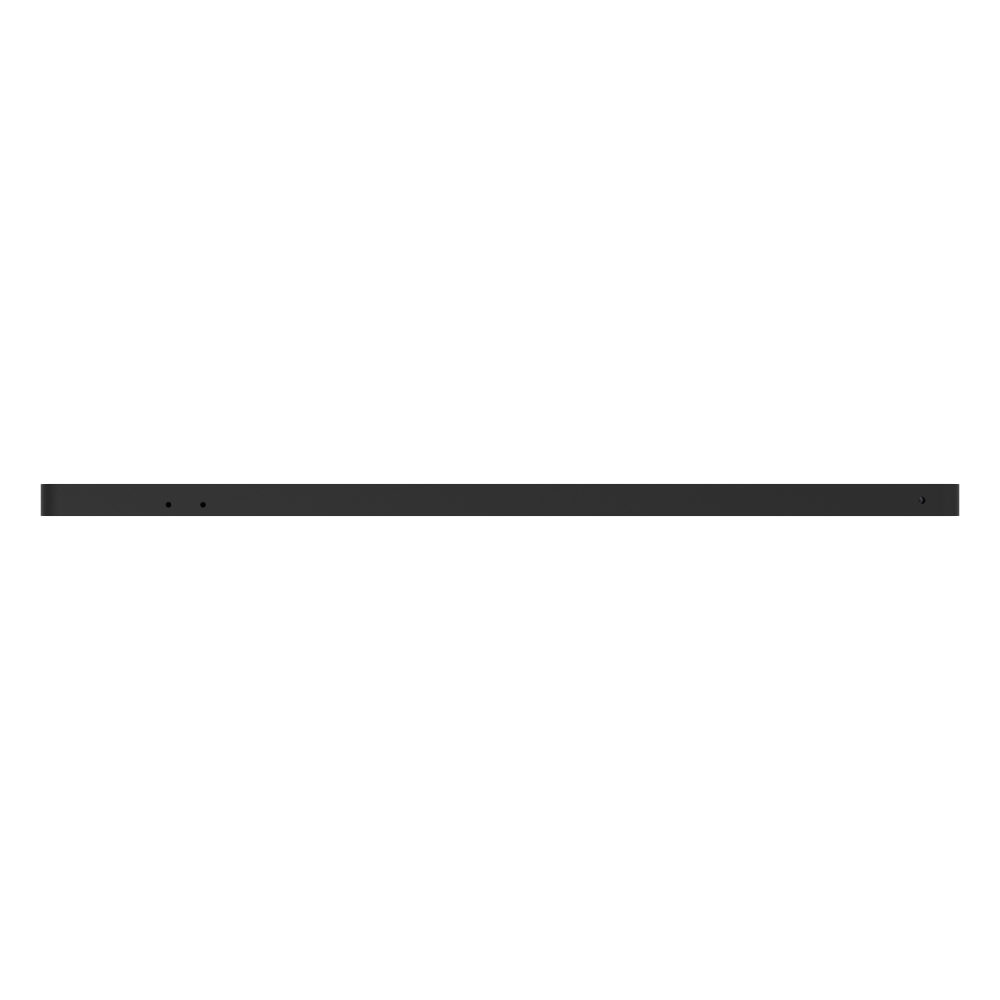

| Product Dimensions: | 12.75 in x 8.87 in x 0.43 in (323.85 mm x 225.3 mm x 10.92 mm) |
| Product Weight: | 1.56 lbs (0.71 kg) |
| Certifications: | - |
- Surface Mount Bezel Manual Pro 12.9" | Pro 11" | mini 6
- IPORT NEW SM Data Sheet _MSRP_2023.pdf
- SM Pro 12.9 inch System_IPORT_Surface Mount_70752_70754_cad_file.pdf
- SM Pro 12.9 inch System_IPORT_Surface Mount_70752_70754_cad_file.DXF
- 70752 70754 BRACKET SM BEZEL PRO 12.9.pdf
- 70752 70754 BRACKET SM BEZEL PRO 12.9
