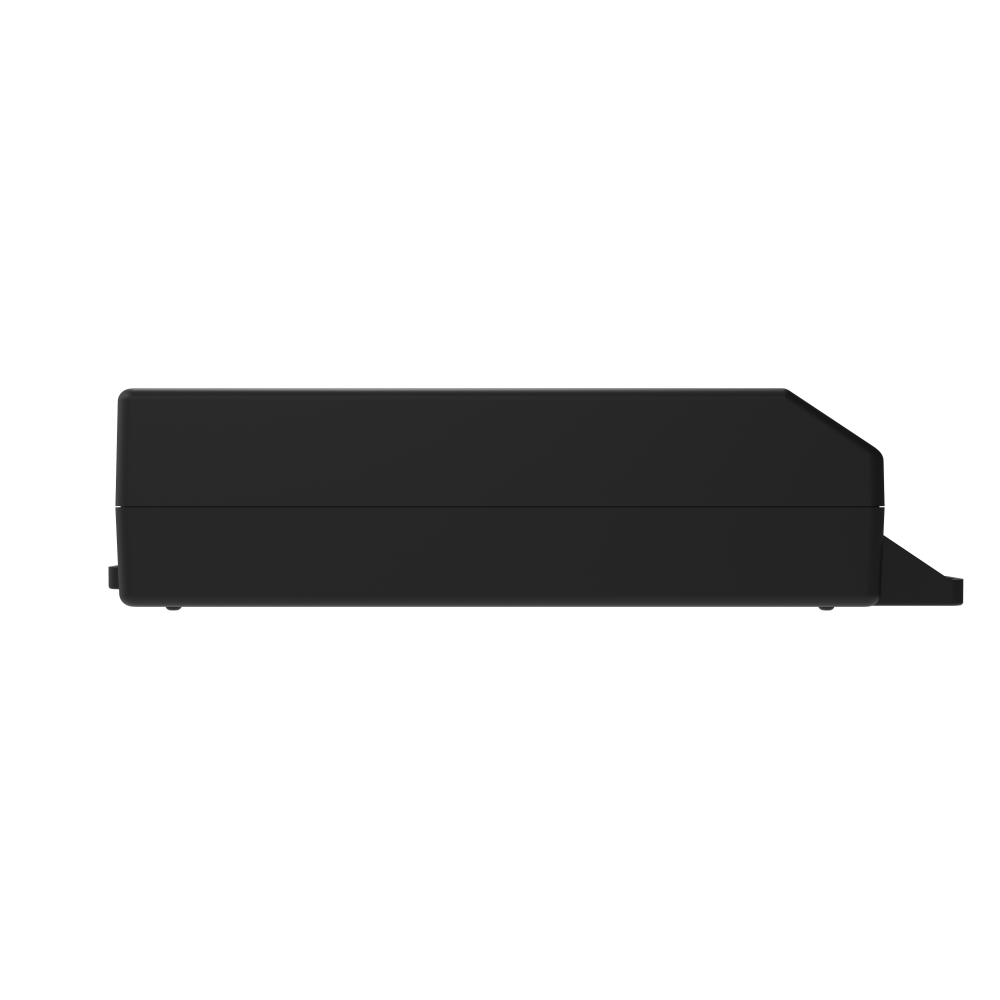

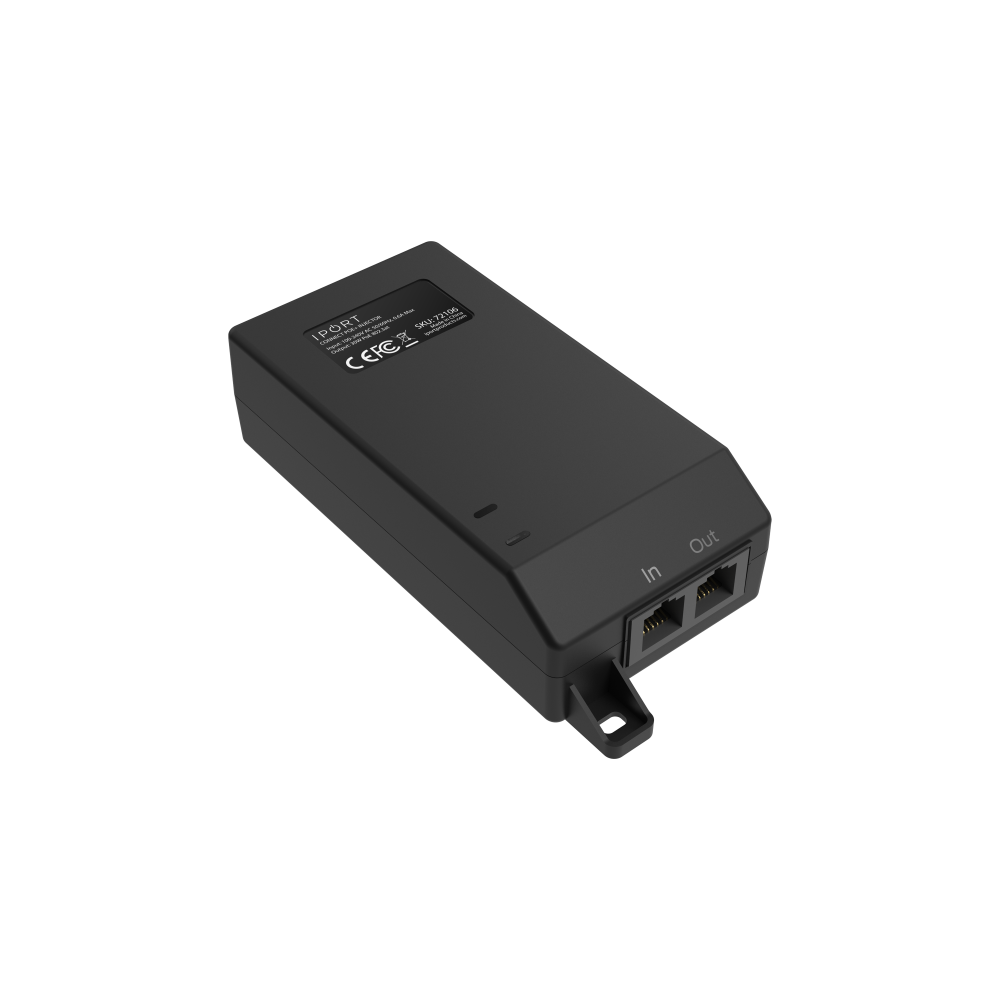

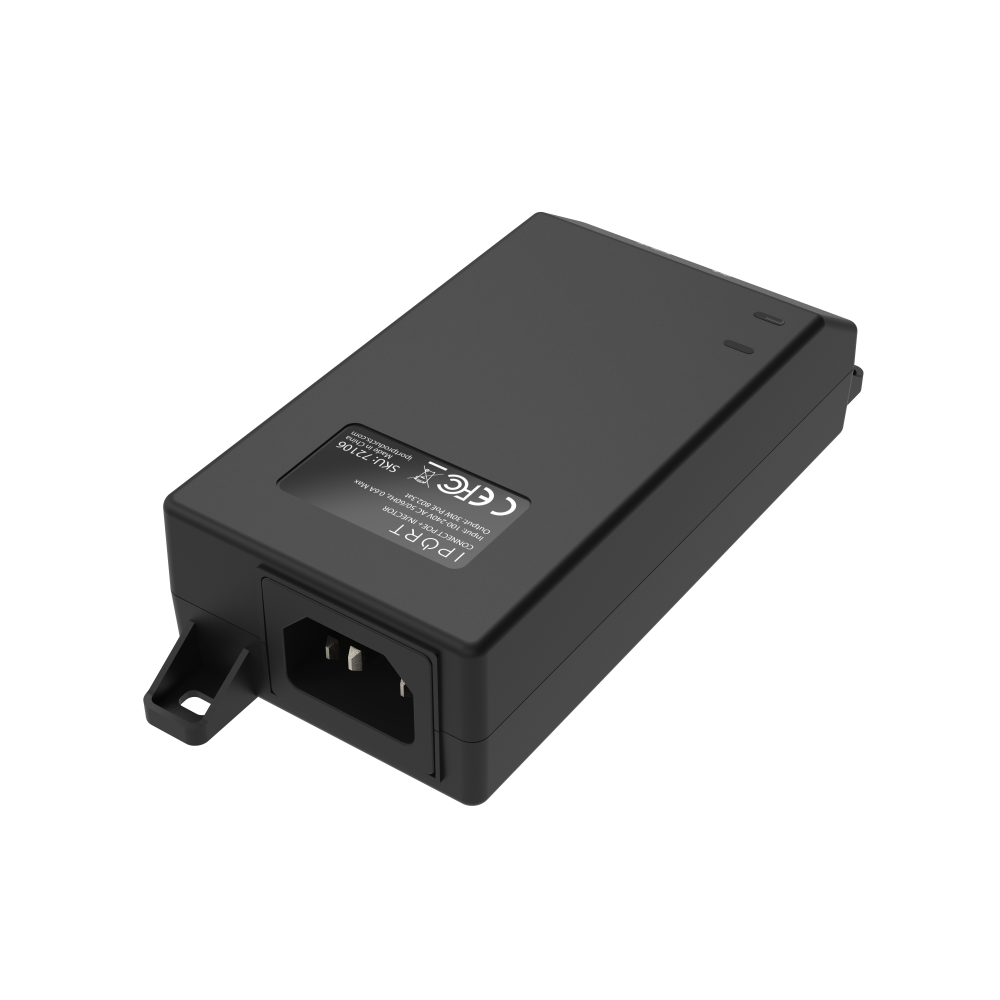

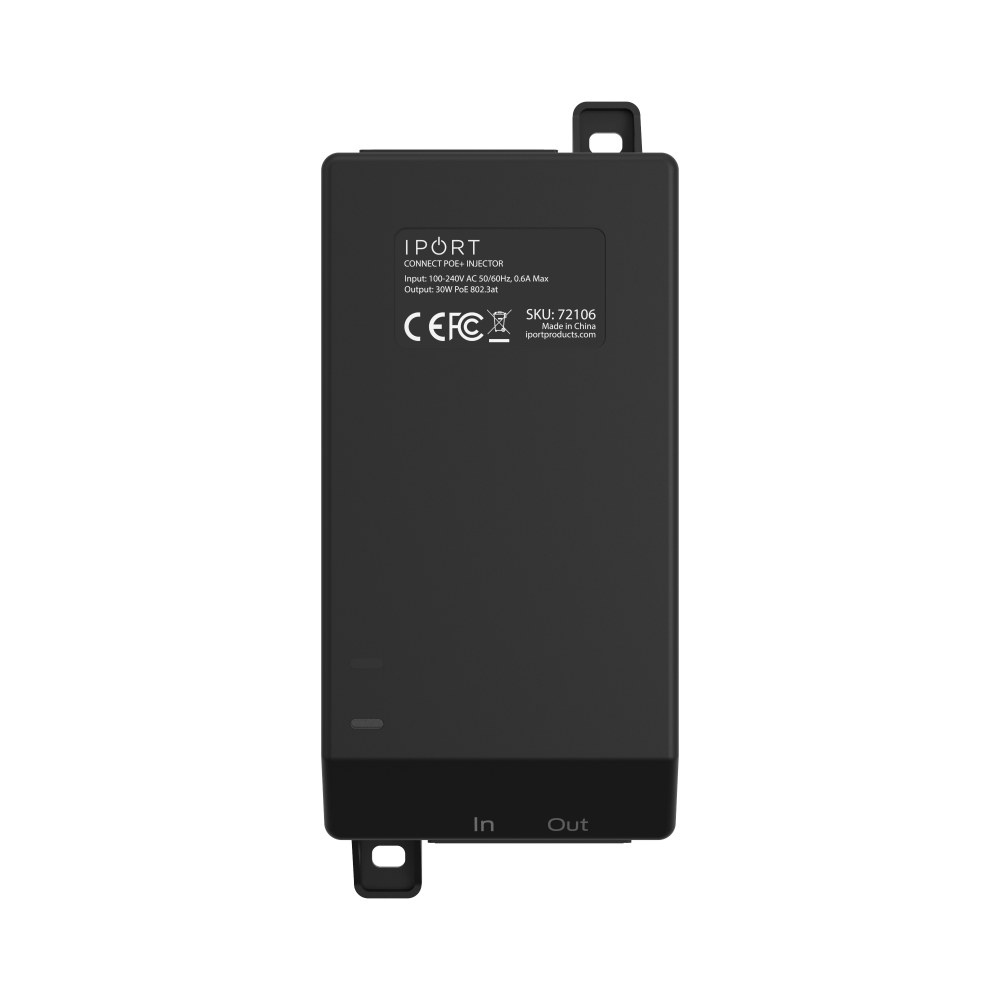

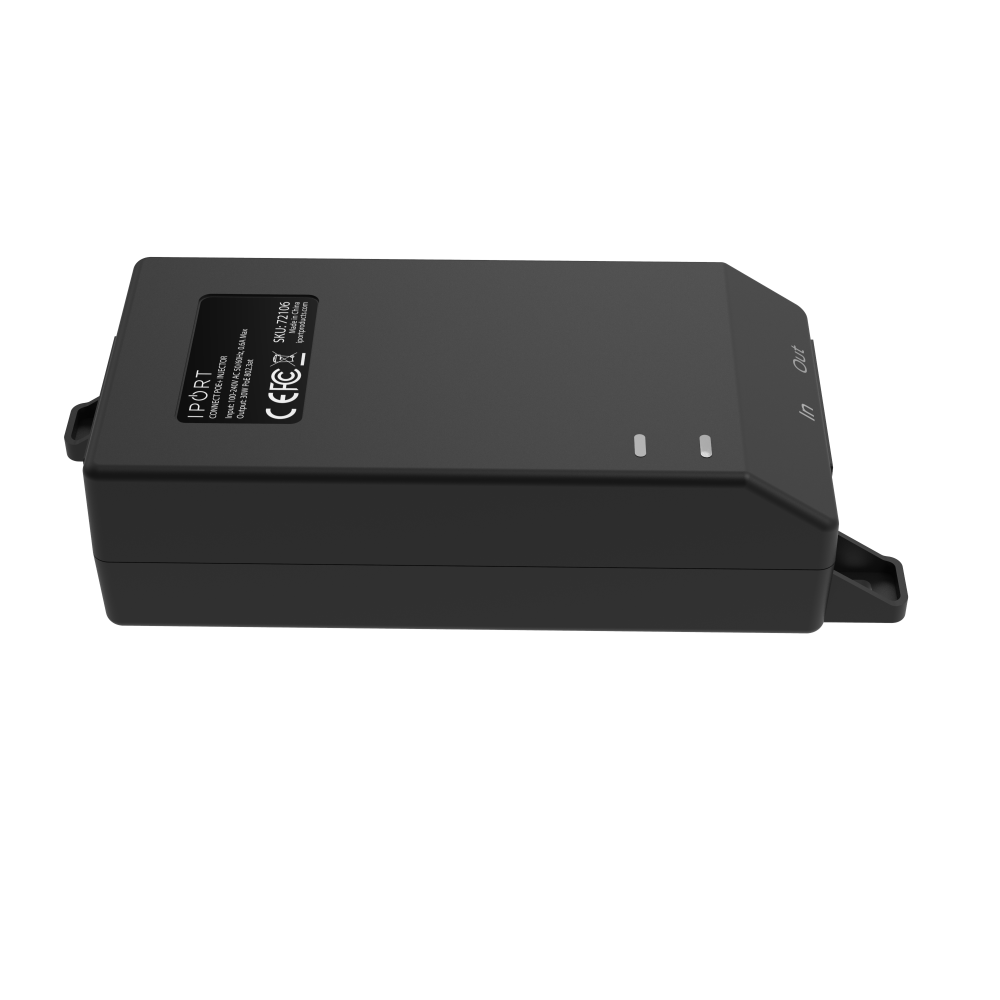

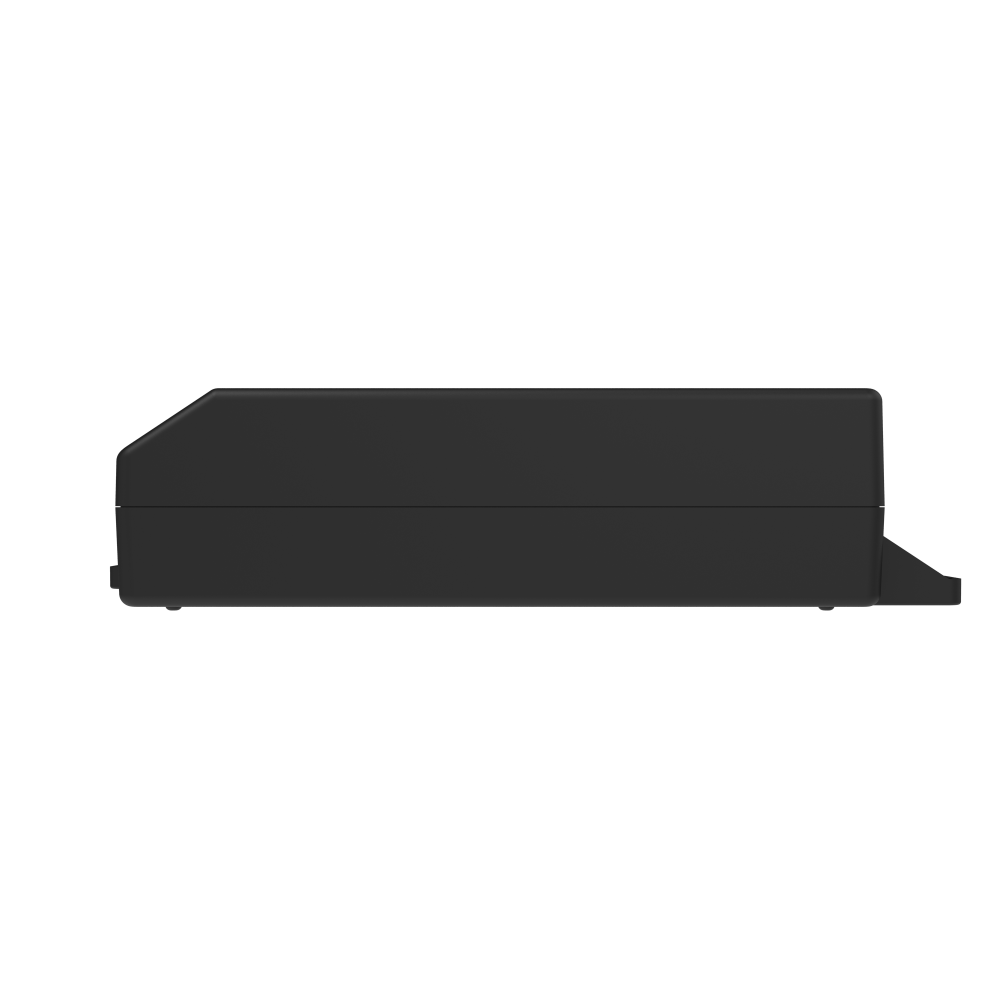

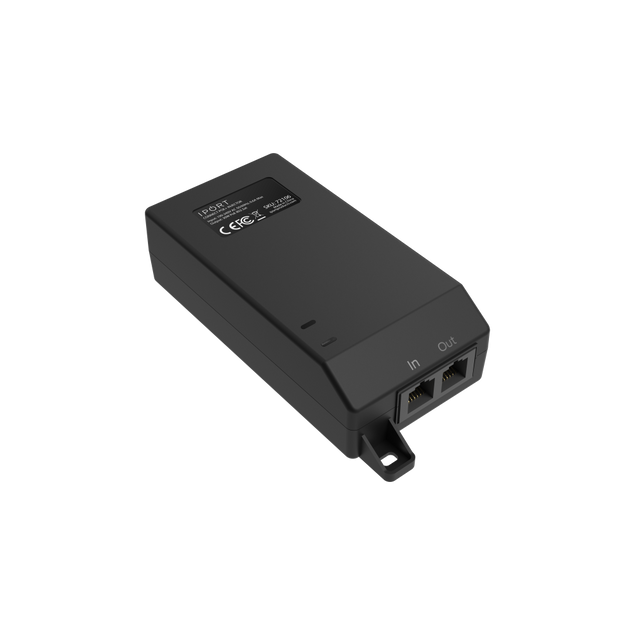

CONNECT PoE+ Injector
CONNECT PoE+ Injector

PoE+ Injector

SKU: 72106
CONNECT PoE+ Injector supplies PoE+ (802.3AT) power to an IPORT PoE+ Adapter up to 30W. The Injector includes an IEC C13 to Type-A Adapter and can be easily replaced with an international IEC cable. Integrated RJ45 inputs and outputs allow for connection to a standard Network switch when the switch does not have PoE+ power and provide hardwired data connectivity to a CONNECT PRO product when paired with a 72101 PoE+ Network Adapter. Use as a standard Power adapter over Cat 5 or Cat 6 cables when longer power runs are needed. Use with or without a data connection.
Qty

These items are out of stock. These items are instock & ready to ship

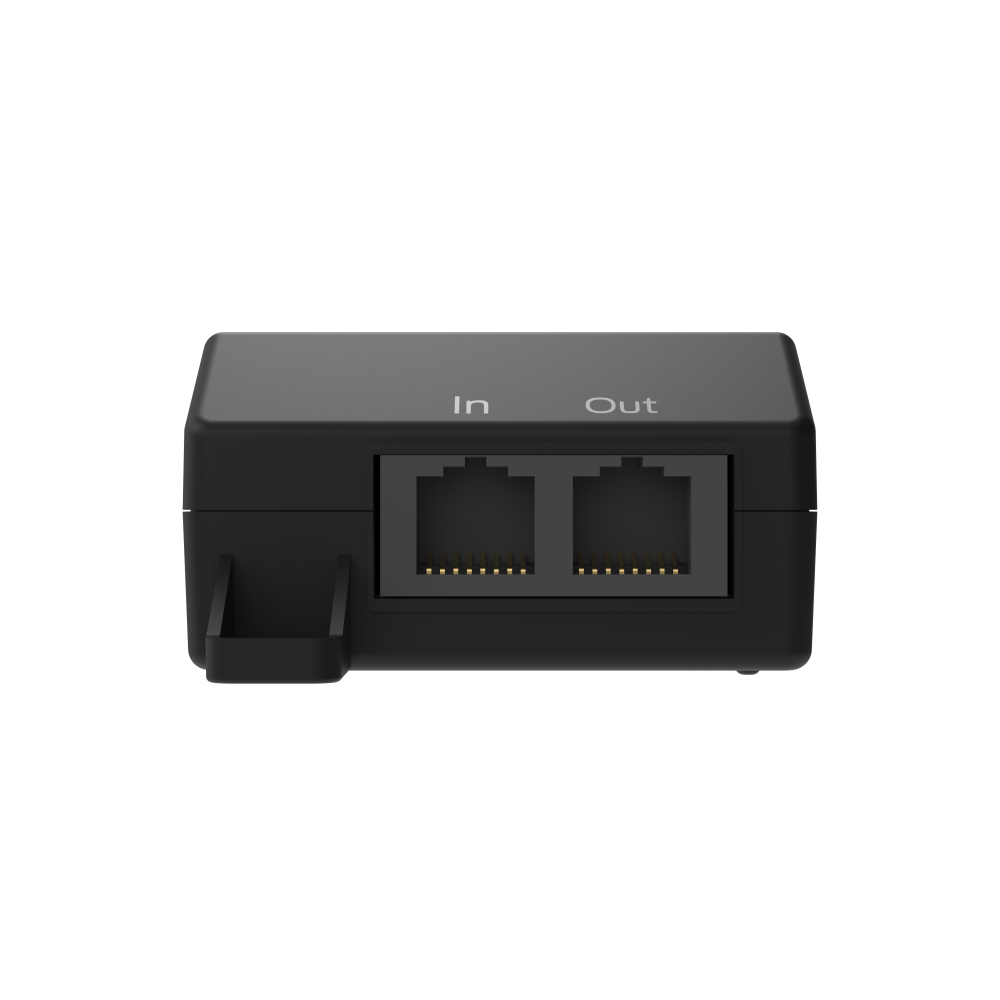

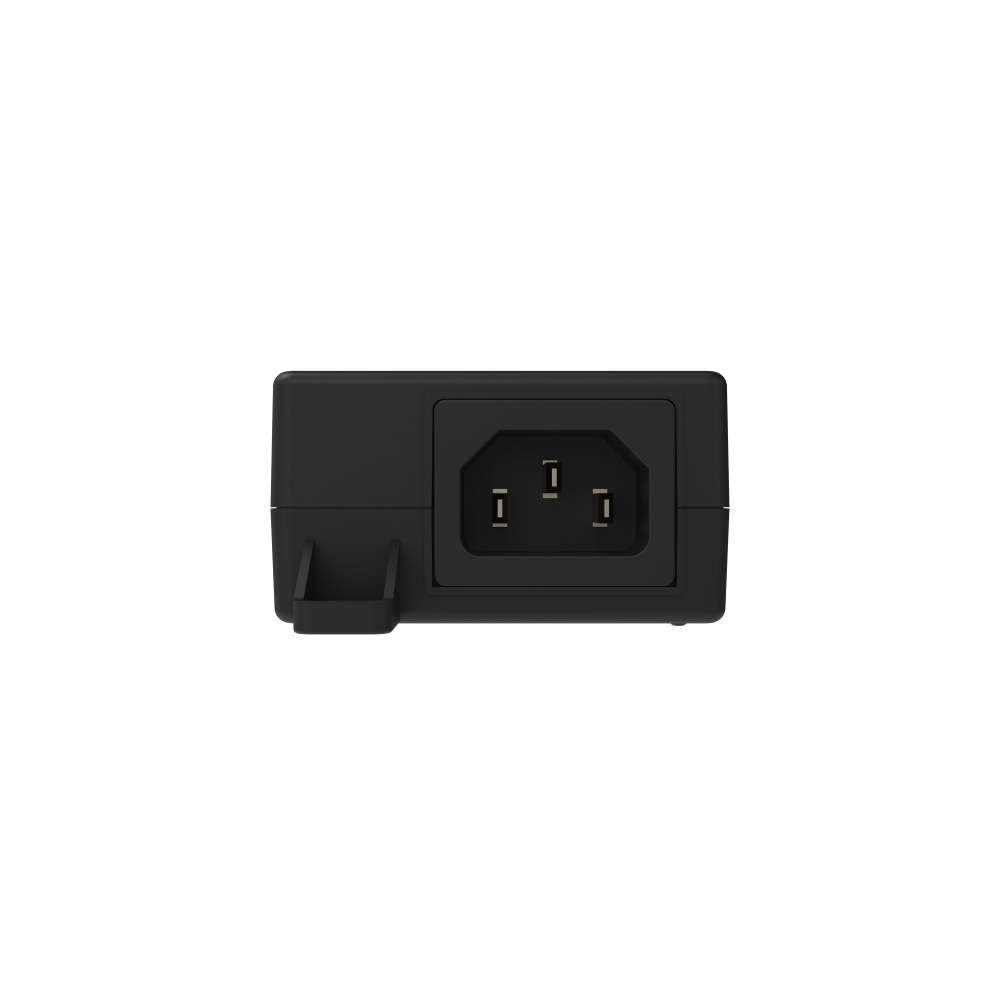

CONNECT PoE+ Injector supplies PoE+ (802.3AT) power to an IPORT PoE+ Adapter up to 30W. The Injector includes an IEC C13 to Type-A Adapter and can be easily replaced with an international IEC cable. Integrated RJ45 inputs and outputs allow for connection to a standard Network switch when the switch does not have PoE+ power and provide hardwired data connectivity to a CONNECT PRO product when paired with a 72101 PoE+ Network Adapter. Use as a standard Power adapter over Cat 5 or Cat 6 cables when longer power runs are needed. Use with or without a data connection.
PoE+ Injector
Information Card
IEC Type A Cable
Warranty: 1 YEAR
Color: Black
AC Socket Types Included: A
Power Supply: Yes
Min Operating Temperature: 32 F (0.0 C)
Max Operating Temperature: 95 F (34.97 C)
Operating Humidity: 5% to 95%
Input Voltage: 110-240VAC
Output Voltage: 55VDC/5.5A
Inputs: IEC-10
Interfaces: RJ45
Prop 65 Warning: Yes
Product Dimensions: 2.33 in x 5.6 in x 1.32 in (59.18 mm x 142.24 mm x 33.53 mm)
Product Weight: 0.67 lbs (0.3 kg)
Certifications: FCC PART 15B Class B, AS/NZS 60950 AS/NZS CISPR22, EN 55032:2015+A11:2020, BS EN 55035:2017+A11:2020
