SURFACE MOUNT System Air13M3WH
SKU:
70754
Qty
These items are out of stock. These items are instock & ready to ship

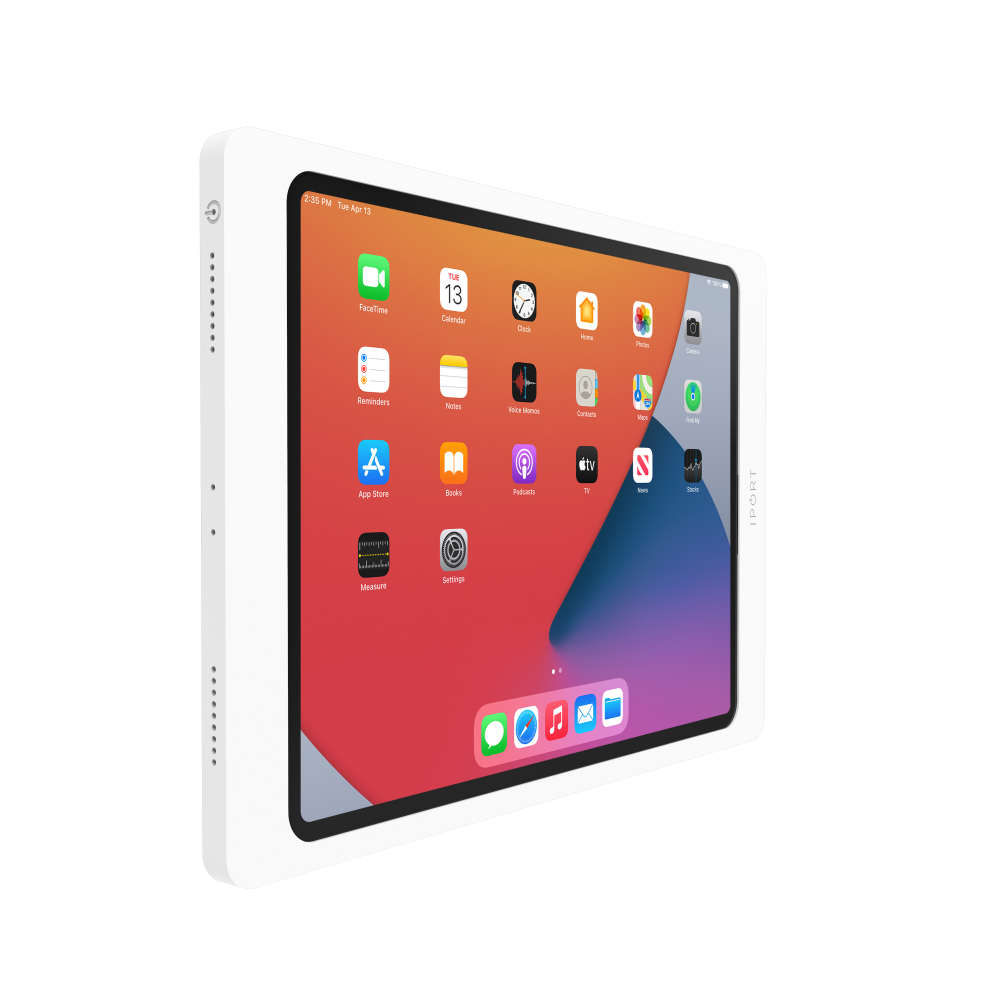

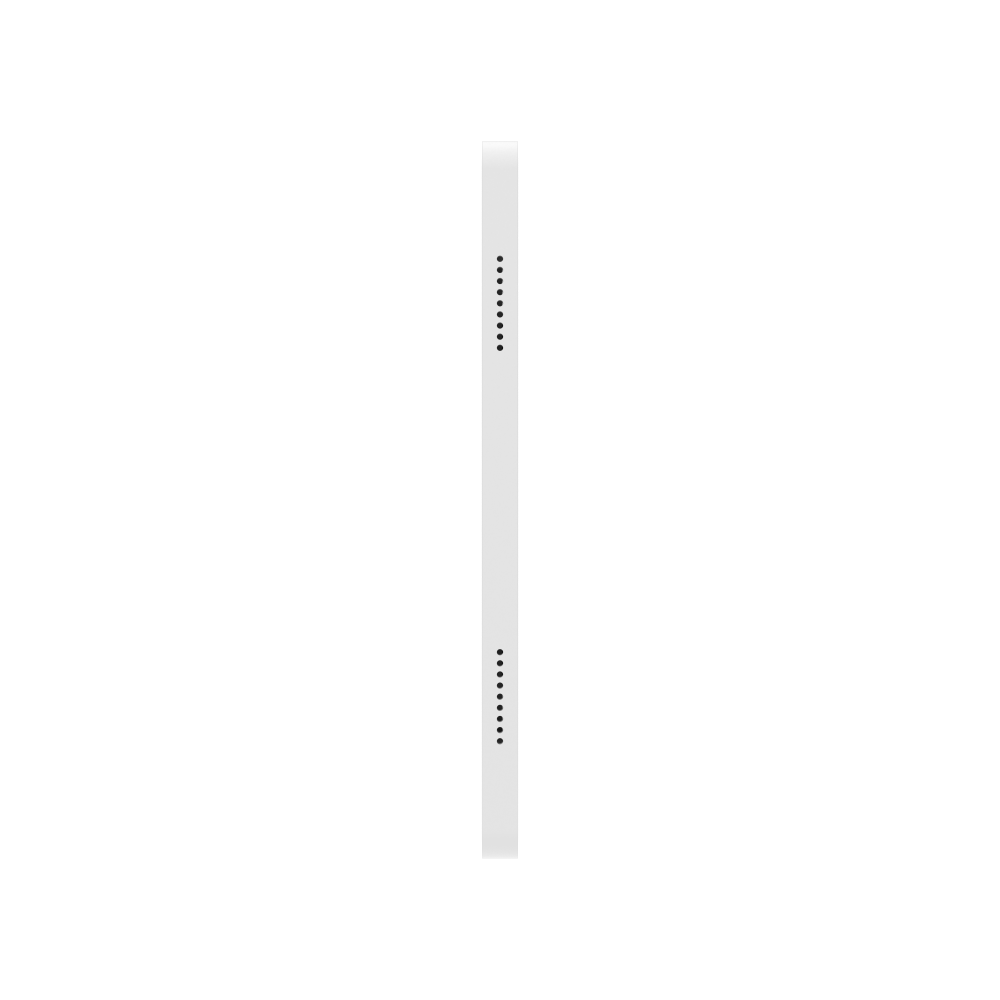

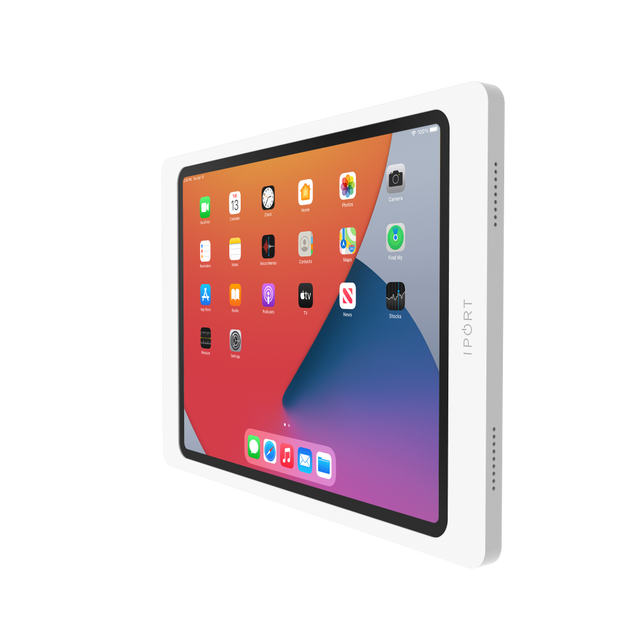

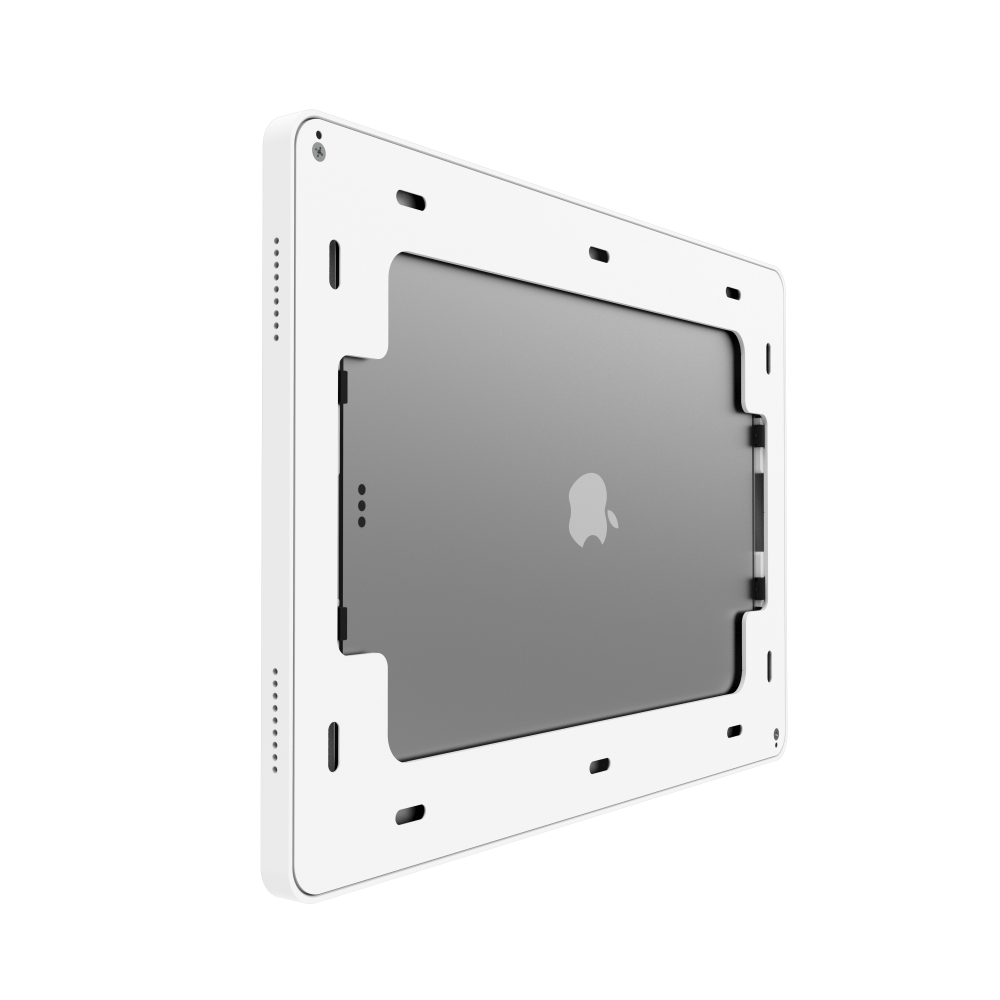

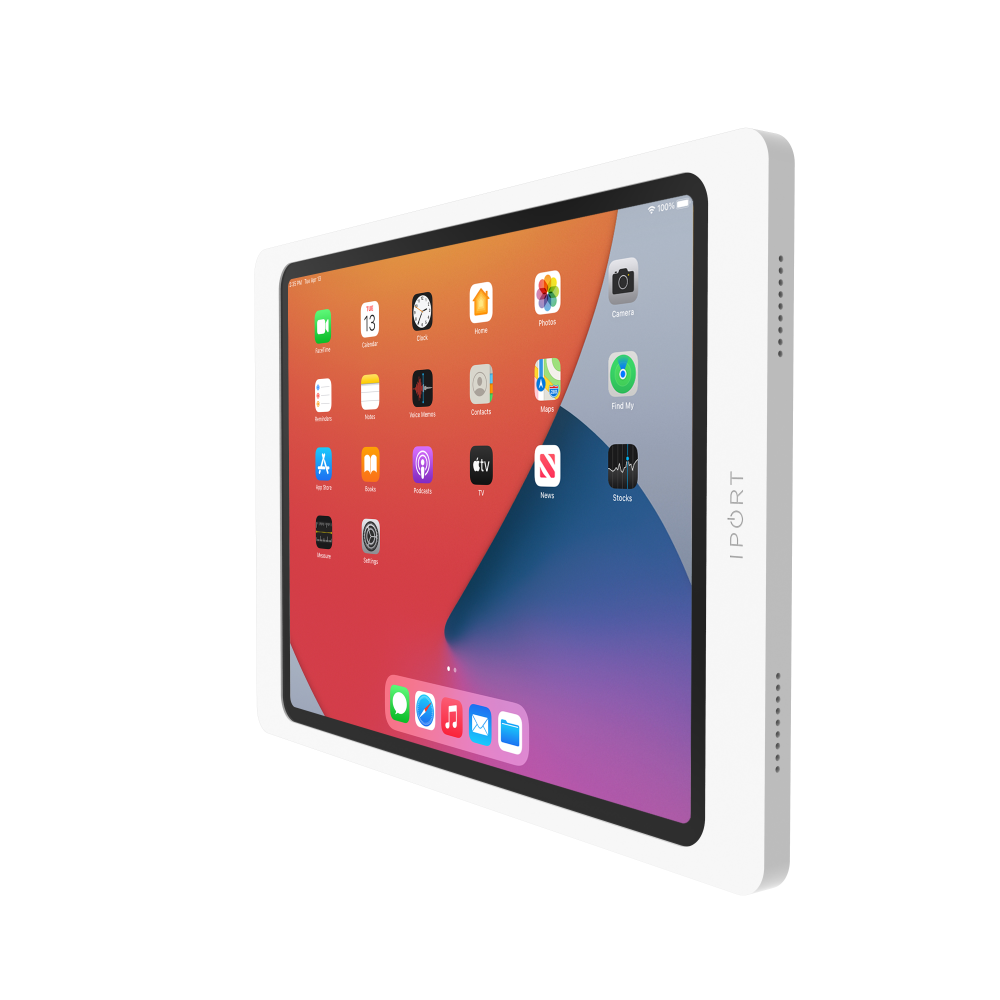

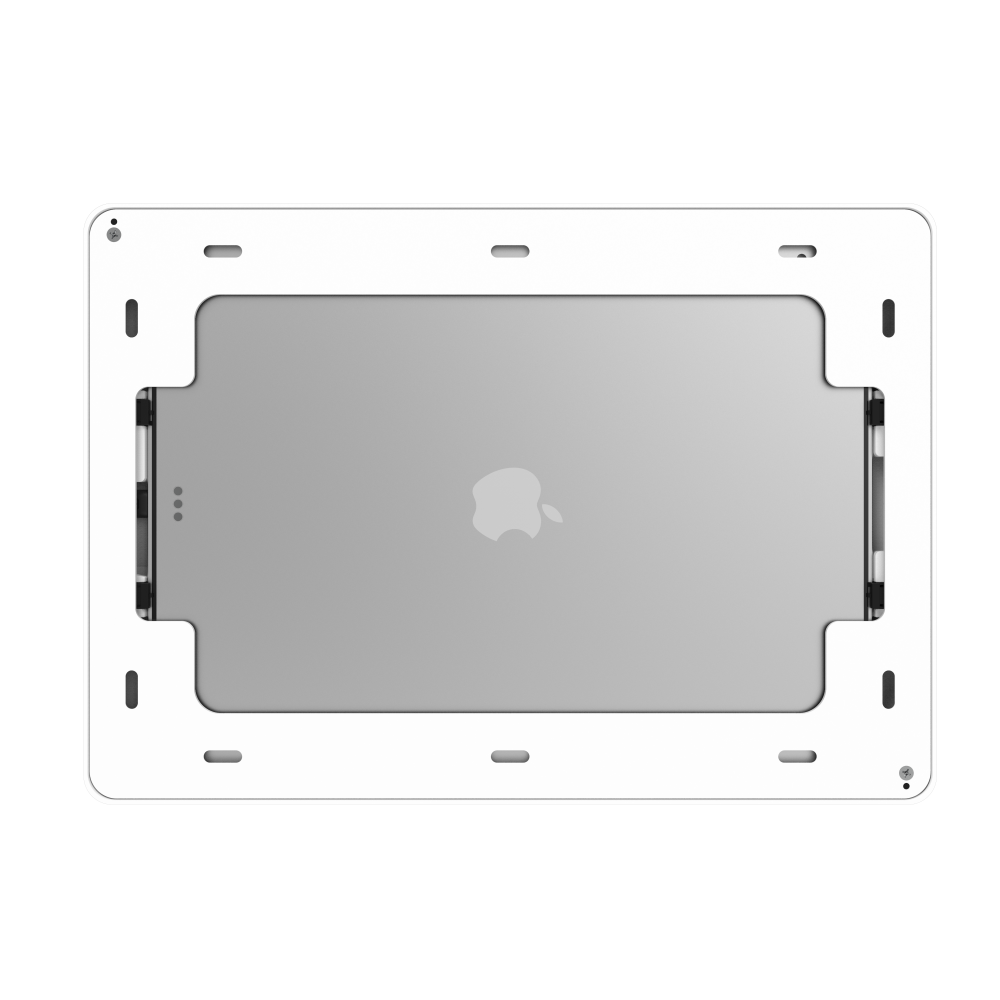

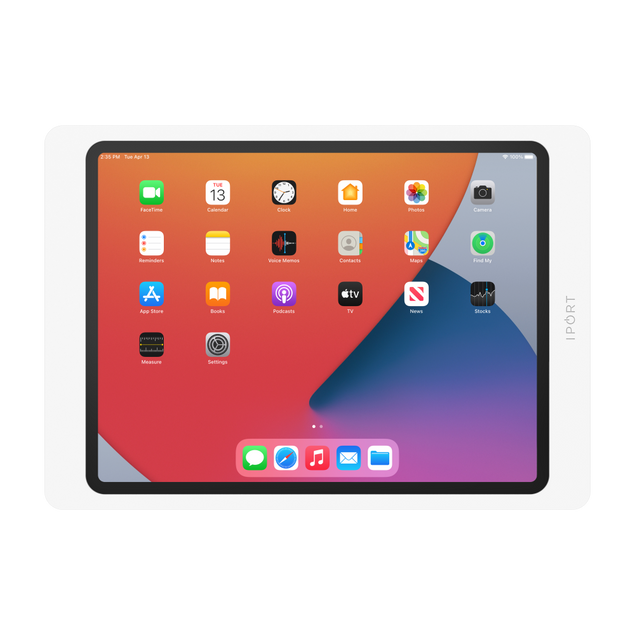

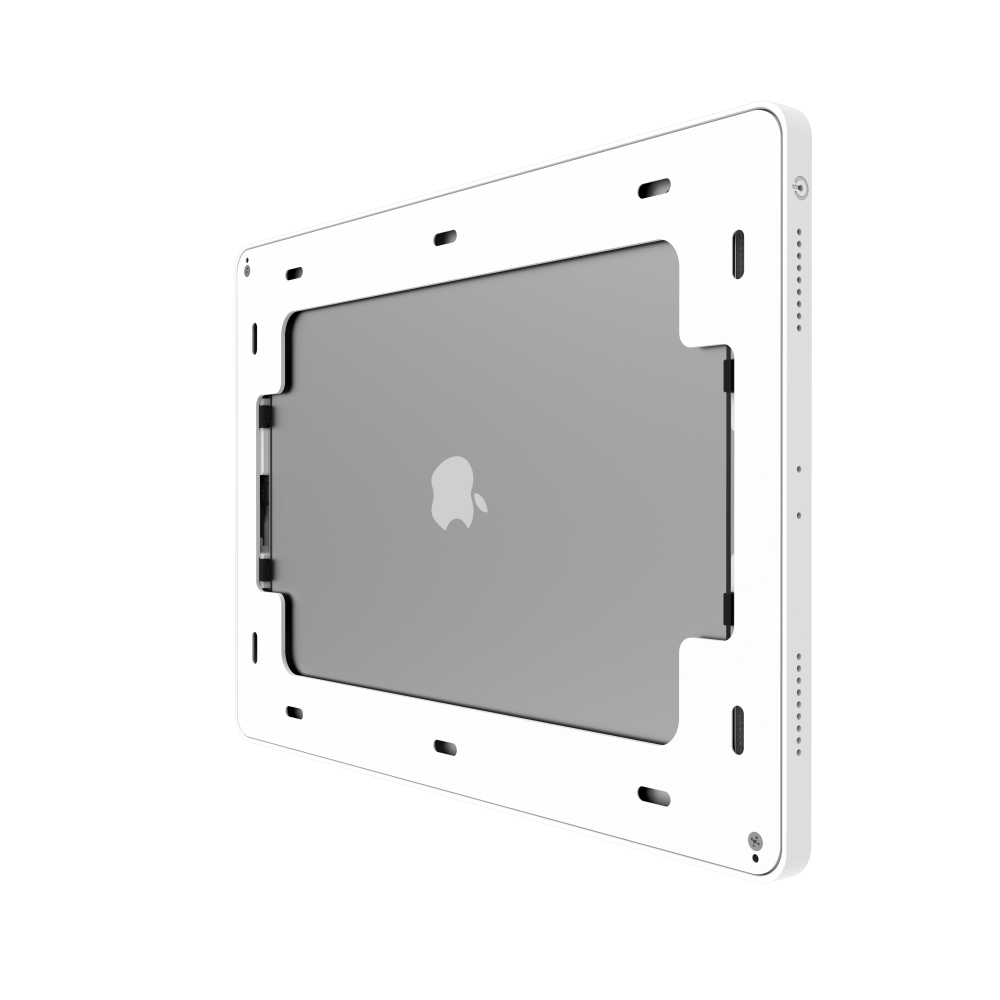

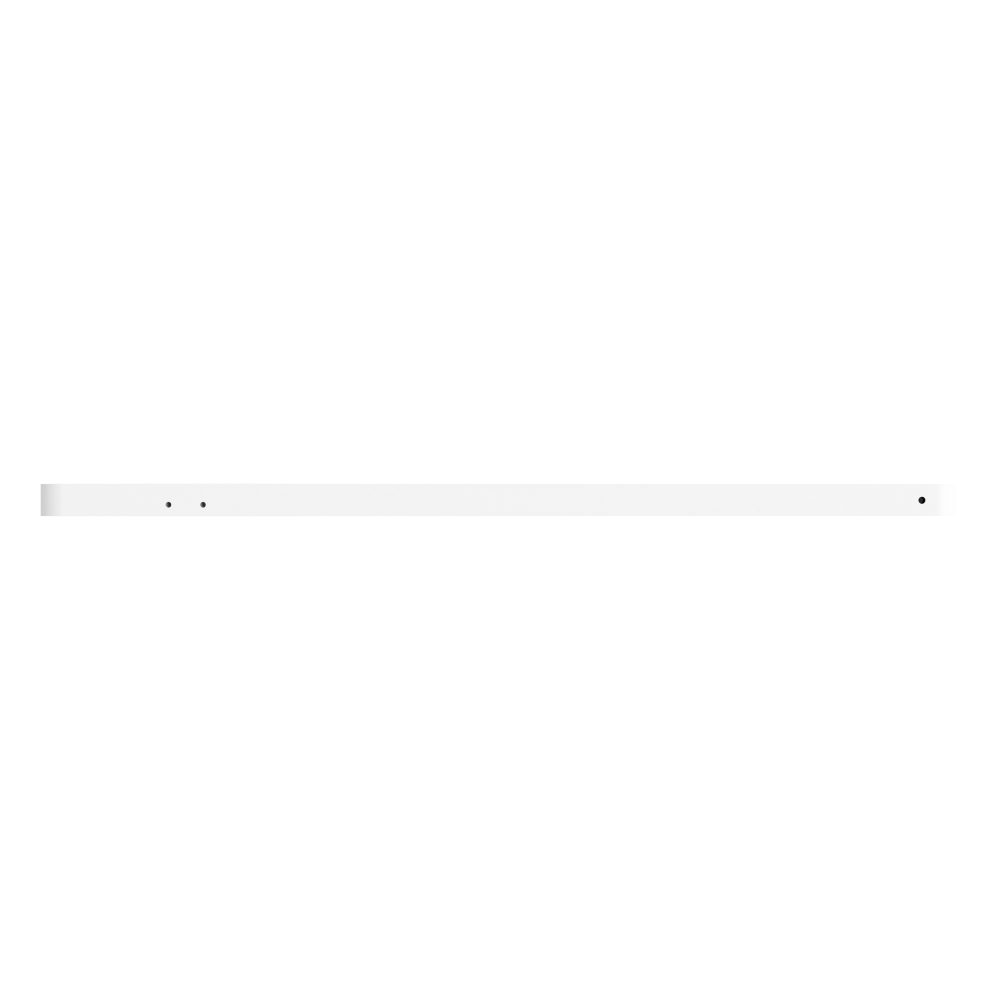

IPORT Surface Mount is the most elegant way to permanently mount iPad on a wall or solid surface. The Surface Mount System includes a minimalist aluminum bezel that doubles as the central mounting component and a PoE+ Adapter and USB-C cable to power and charge iPad. Surface Mount can be wired using a Cat5 cable up to 300 ft. from the power source. The bezel allows complete access to the iPad power button, microphones, and speakers and stays secure with built-in locking components in the bezel. Available in black and white finishes, Surface Mount is the best iPad wall mount to install iPad on any surface while ensuring it blends into your space.
| Warranty: | 1 YEAR |
| Model: | iPad Air 13-in (M3) |
| Compatible Tablets: | iPad Pro 12.9" (6th gen) |
| Color: | White |
| Works With: | iPad Air 13-inch (M3) |
| Lockable: | Yes |
| Min Operating Temperature: | 32 F (0.0 C) |
| Max Operating Temperature: | 95 F (34.97 C) |
| Operating Humidity: | 5% to 95% |
| Input Voltage: | 5.3VDC/3A; 9VDC/3A |
| Wall Box Compatibility: | US1G, EURO1G, UK1G |
| Required Power at Switch: | 50-57 volts DC, 30W |
| Output Voltage: | 5.3VDC/3A; 9VDC/3A |
| iPad Model Number: | A2898, A2899, A2900, A3268, A3269, A3271 |
| iPad Order Number: | MV2D3LL/A, MV273LL/A, MV293LL/A, MV283LL/A, MV2C3LL/A, MV2J3LL/A, MV2G3LL/A, MV2F3LL/A, MV2H3LL/A, MV2P3LL/A, MV2R3LL/A, MV2Q3LL/A, MV2T3LL/A, MV2L3LL/A, MV2K3LL/A, MV2N3LL/A, MV6R3LL/A, MV6T3LL/A, MV6V3LL/A, MV6X3LL/A, MV6U3LL/A, MV6W3LL/A, MV6Y3LL/A, MV703LL/A, MV6Q3LL/A, MV6S3LL/A, MV6P3LL/A, MV783CH/A, MV7D3CH/A, MV7H3CH/A, MV7M3CH/A, MV7A3CH/A, MV7F3CH/A, MV7K3CH/A, MV7P3CH/A, MV7C3CH/A, MV7G3CH/A, MV7L3CH/A, MV7Q3CH/A, MV793CH/A, MV7E3CH/A, MV7J3CH/A, MV7N3CH/A |
| Inputs: | Molex - M |
| Outputs: | USB-C |
| Interfaces: | USB-C |
| Prop 65 Warning: | Yes |
| Product Dimensions: | 12.75 in x 8.87 in x 0.43 in (323.85 mm x 225.3 mm x 10.92 mm) |
| Product Weight: | 1.56 lbs (0.71 kg) |
| Certifications: | - |
- Surface Mount Bezel Manual Pro 12.9" | Pro 11" | mini 6
- IPORT NEW SM Data Sheet _MSRP_2023.pdf
- SM Pro 12.9 inch System_IPORT_Surface Mount_70752_70754_cad_file.pdf
- SM Pro 12.9 inch System_IPORT_Surface Mount_70752_70754_cad_file.DXF
- 70752 70754 BRACKET SM BEZEL PRO 12.9.pdf
- 70752 70754 BRACKET SM BEZEL PRO 12.9
