SURFACE MOUNT System 9gen BK
These items are out of stock. These items are instock & ready to ship

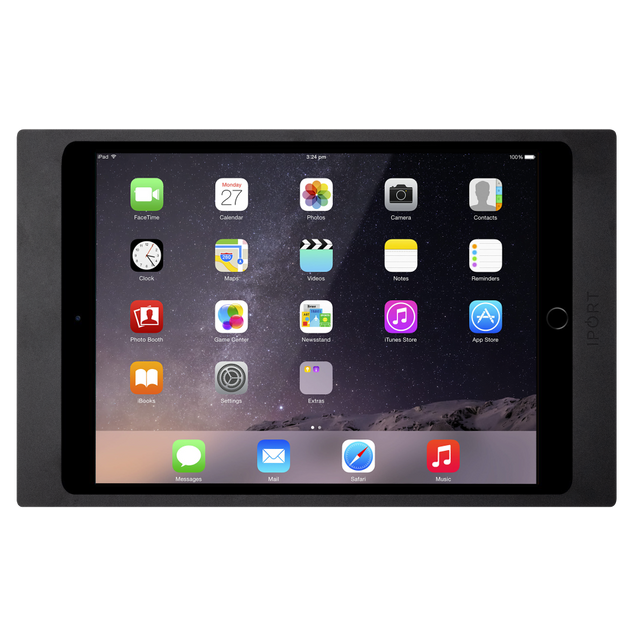

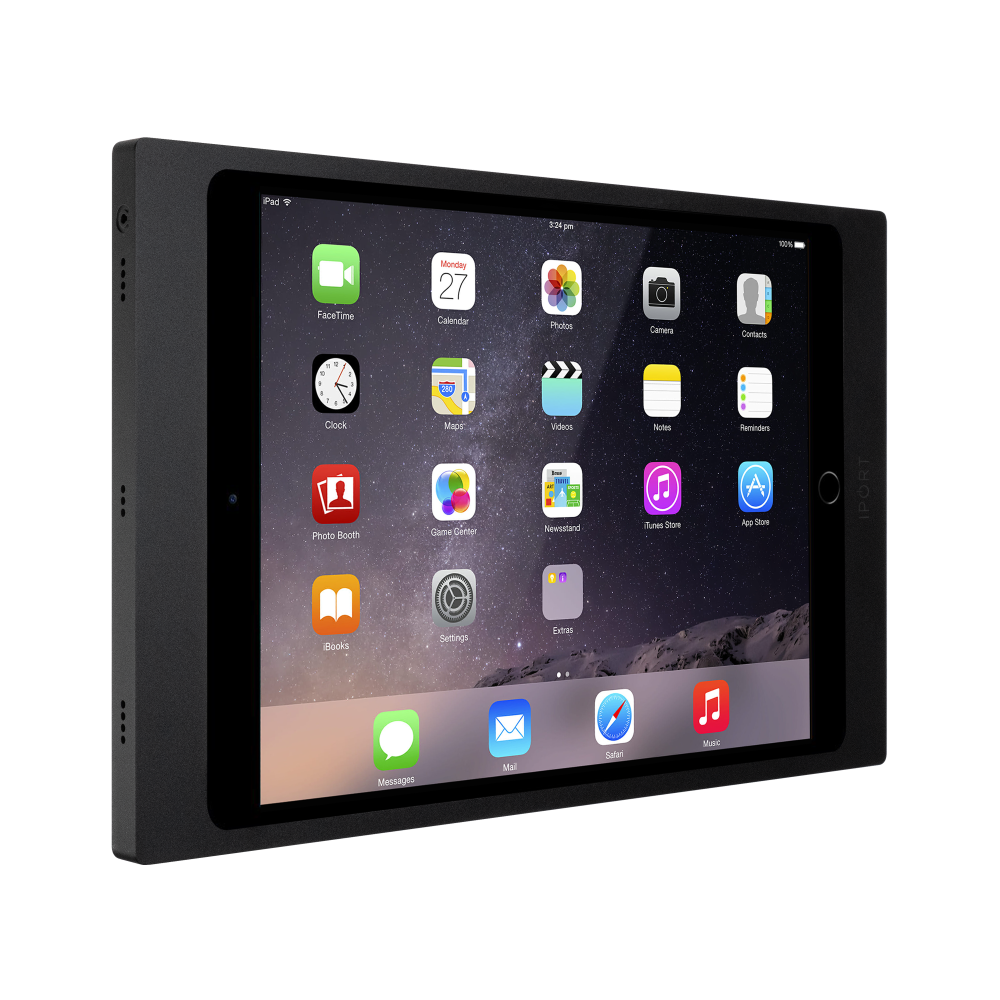

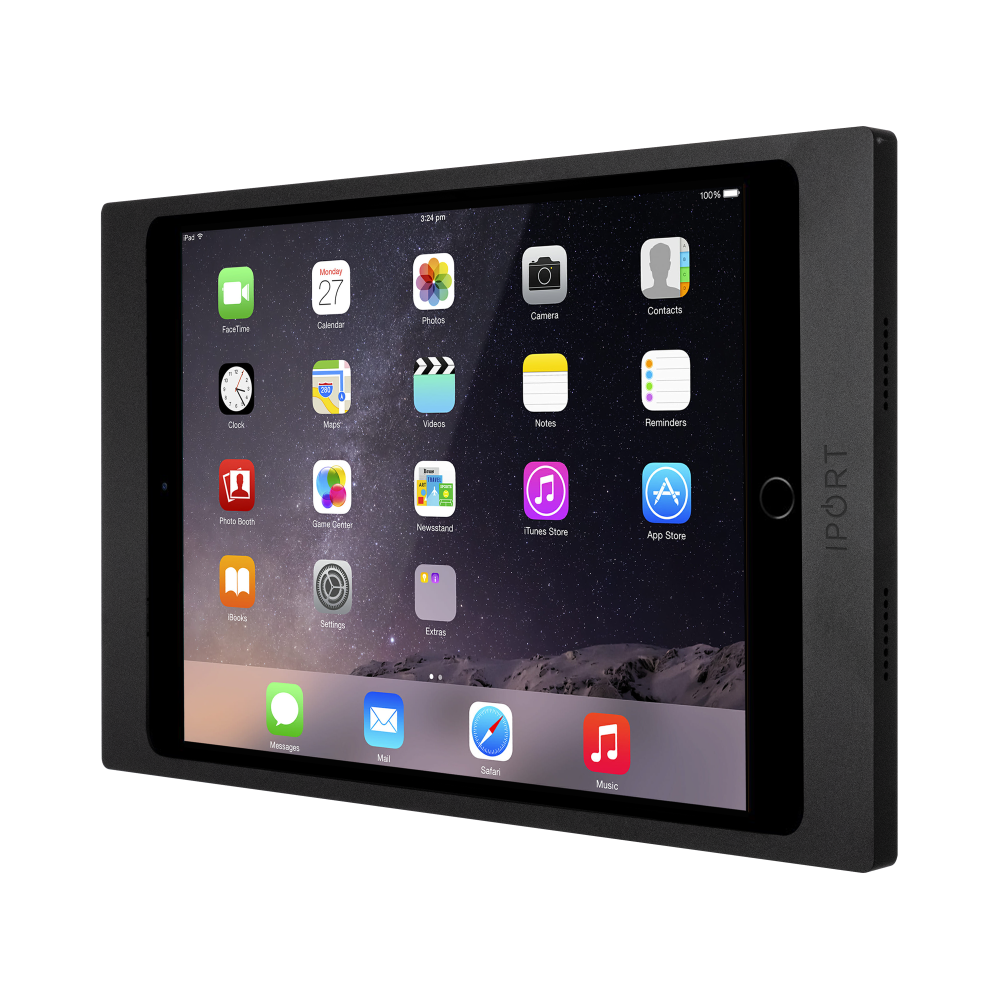

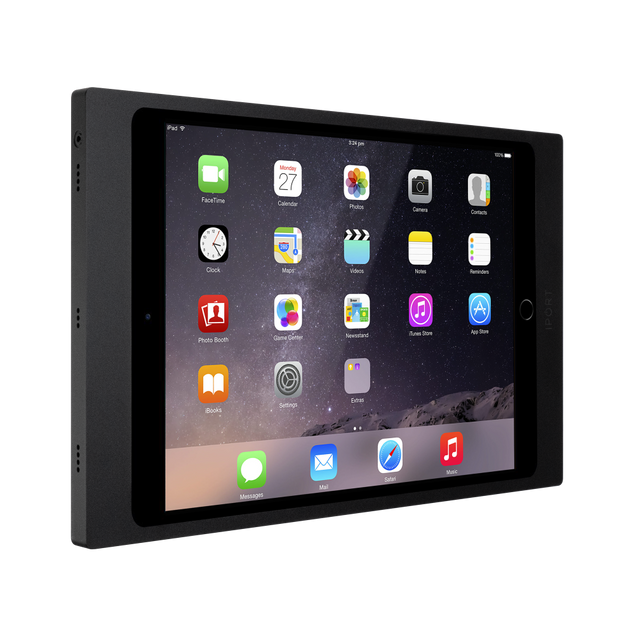

IPORT Surface Mount is the most elegant way to permanently mount iPad on a wall or solid surface. The Surface Mount System includes a minimalist aluminum bezel that doubles as the central mounting component and a PoE+ Adapter and USB-C cable to power and charge iPad. Surface Mount can be wired using a Cat5 cable up to 300 ft. from the power source. The bezel allows complete access to the iPad power button, microphones, and speakers and stays secure with built-in locking components in the bezel. Available in black and white finishes, Surface Mount is the best iPad wall mount to install iPad on any surface while ensuring it blends into your space.
PLEASE NOTE: The IPORT Case covers the iPad power button. Apple Touch ID will not function when the iPad is installed in this IPORT Case.
| Warranty: | 1 YEAR |
| Model: | iPad 10.2" (9th gen) |
| Compatible Tablets: | iPad 10.2" (9th gen) |
| Color: | Black |
| Works With: | iPad 10.2" (9th gen) |
| Lockable: | Yes |
| Min Operating Temperature: | 32 F (0.0 C) |
| Max Operating Temperature: | 95 F (34.97 C) |
| Operating Humidity: | 5% to 95% |
| Input Voltage: | 5.3VDC/3A; 9VDC/3A |
| Wall Box Compatibility: | US1G, EURO1G, UK1G |
| Required Power at Switch: | 50-57 volts DC, 30W |
| Output Voltage: | 5.3VDC/3A; 9VDC/3A |
| Inputs: | Molex - M |
| Outputs: | USB-C |
| Interfaces: | USB-C |
| Prop 65 Warning: | Yes |
| Product Dimensions: | 11.5 in x 7.3 in x 0.5 in (292.1 mm x 185.42 mm x 12.7 mm) |
| Product Weight: | 0.42 lbs (0.19 kg) |
- Surface Mount Bezel Manual
- Surface Mount iPad 10.2 Fit Pad Instructions
- IPORT NEW SM Data Sheet _MSRP_2022.pdf
- 10.2 System_IPORT_Surface Mount_70808_70809_cad_file.pdf
- SM 10.2 Bracket_IPORT_Surface Mount_70808_70809_cad_file.pdf
- 10.2 System_IPORT_Surface Mount_70808_70809_cad_file.DWG
- 10.2 System_IPORT_Surface Mount_70808_70809_cad_file.DXF
